My Wood Working Page

Note: This web page is not aimed to be informative but to allow me to post info stuff that is usually linked the rec.woodworking news group. As in, when I post a question that requires an image or two to understand, this is where the pictures will be found.

Here are a couple of images of how I plan the layout my workshop. The proportions are exact (measured down to 1/4”).

Top View: (wire frame)

Side View: (wire frame)

Front View: (wire frame)

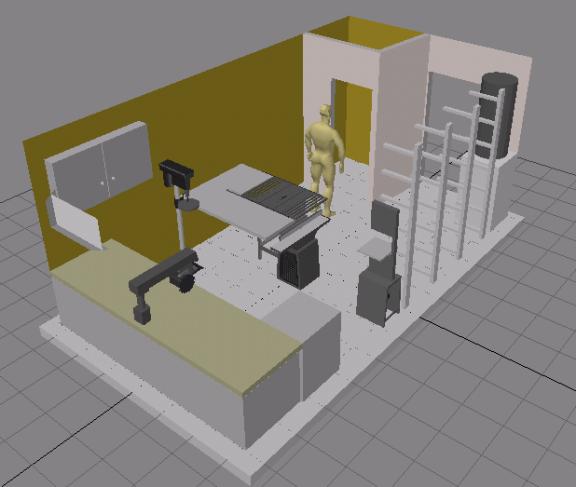

Preview 1: (with 6’man for ref, quick shade)

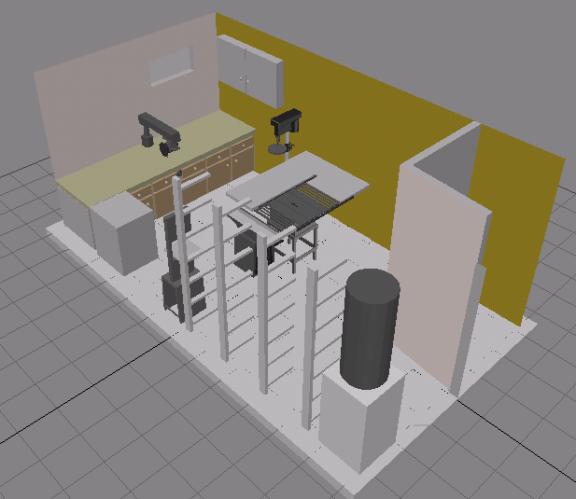

Preview 2: (quick shade)

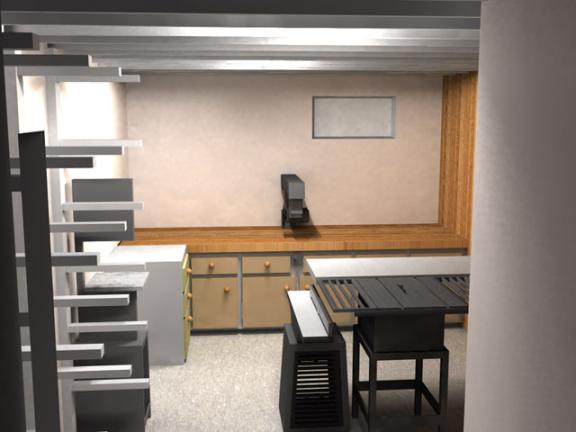

Render: ( test J )
