Model

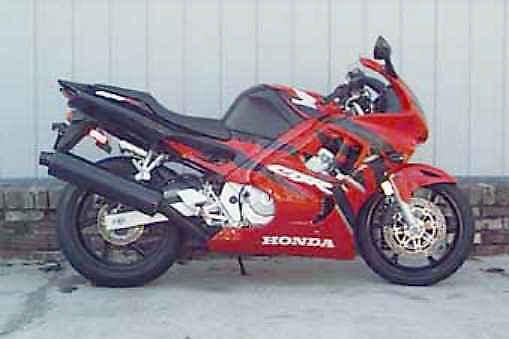

1997 CBR600F3

Engine Type
599cc liquid-cooled inline four-cylinder

Bore and Stroke
65mm x 45.2mm

Compression Ratio
12.0:1

Peak Horsepower
90 bhp at 11,500 rpm

Peak Torque
43.7 ft-lbs at 10,000 rpm

Valve Train
DOHC; four valves per cylinder

Carburetion
Four 36mm slanted flat-slide CV

Ignition
Computer-controlled digital transistorized with three-dimensional mapping

Transmission
Close-ratio six-speed

Final Drive
O-ring-sealed chain

Suspension
Front: 41mm HMAS cartridge fork with spring preload and rebound
damping adjustability; 5.1 inches travel
Rear: Pro-Link® HMAS single shock with seven-way spring preload, and
rebound and compression damping adjustability; 4.7 inches travel

Brakes
Front: Dual disc with twin-piston calipers
Rear: Single disc

Tires
Front: 120/60ZR-17 radial
Rear: 160/60ZR-17 radial

Wheelbase
55.3 inches
Seat Height
31.9 inches

Dry Weight
405.6 pounds
Fuel Capacity
4.5 gallons, including 0.8-gallon reserve
