RDS + RBDS
THE "EN-50067 RDS +U.S. RBDS STANDARD"
DOWNLOAD FOR FREE !!!
http://www.nab.org/scitech/rbds1998.pdf
HOMEBREW RDS-DECODER & SOFTWARE
http://user.online.be/fmradio/software.html
http://www.csdxc.cz/software.htm
RDS-ENCODER SOFTWARE
Rds-software.(needed 486 or higher, working on dosmodus!!!)
It's support PI,PS,DI,PTY,RT,CT,TP,TA and M/S.
Group 0B + 2A + 4A
The PS feature is dynamic allowing up to 8 or 64 different names!
Now the software can be used by pentium 100 mhz and higher.
The "runtime error 200" problem is solved.!!!!!!!!!!!!
RDS-ENCODER SOFTWARE (20kb)(older version)
8 PS NAMES
http://www.fortunecity.com/tinpan/albarn/748/T15.exe
RDS-ENCODER SOFTWARE (26kb) (new version)
64 PS NAMES
http://www.fortunecity.com/tinpan/albarn/748/Rds15.exe
RDS-ENCODER
Use the printer-cable for the connection.
Use pin 11(busy) for the incomming clock and pin 2 (D0) for data out.
Pin 18 is the signal ground.
For example,this is my way of connecting:

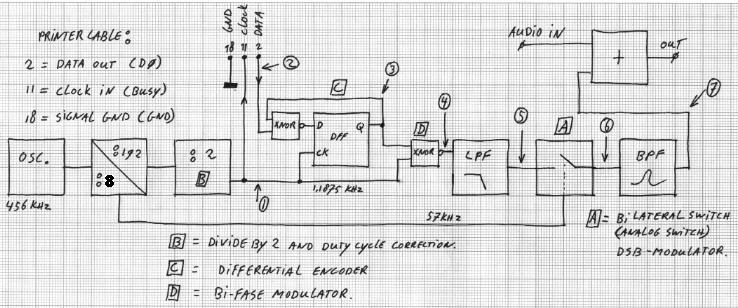

This is a simple plan of my homebrew lowcost rds-encoder.
