Functions:

1. Diagnostic any PC 286/386/486/586/686/PII/PIII... system and  mother.board.

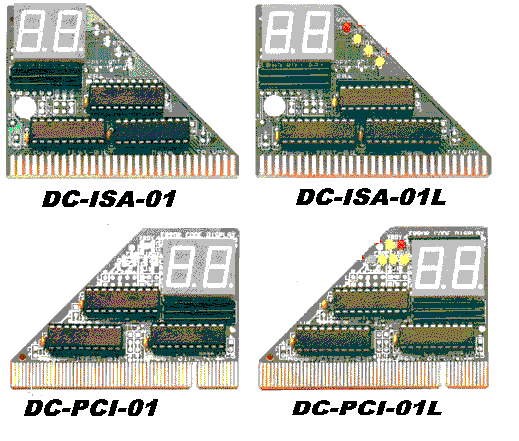

2. DC-ISA-01 and DC-ISA-01L for ISA-BUS;.DC-PCI-01 and DC-PCI-01L for PCI-BUS.

3. Insert test card to slot, turn power on, then ERROR.CODE  display.
   check it with ERROR CODE list, will know.where was  broken.

4. DIGIT(Hexadecimal code) display ERROR CODE.

5. DC-ISA-01L Within 4pcs VCC, RST(ReSeT driver), RDY(I/O channel  ReadY),
    ALE(Address Latch Enable)LED inductor.

6. DC-PCI-01L Within 6pcs VCC, GND, FRAME, RST, IRDY, TRDY LED inductor.

Key Benefits

• Show instant information on  system status(even for a dead PC)

• Narrow problems down to a small range of PC components  with accurate
  error detection

• Speed up RMA checking process

 Who would use a POST card?

Systems Integrators and Technicians in the field, plant, office or service centre, diagnosing faults in non-booting systems to determine components to exchange.

Computer Manufacturers, to display POST codes of system boards or partial systems set to loopback/manufacturing test mode during burn in.

Computer Hobbyists and End Users, to determine if their hardware is faulty or just set up wrong. Faulty components can be identified before being sent out for service, saving hours of trial and error module swapping at service centre repair rates (less than one hour of labour or one module saved would often have the card pay for itself). Many hobbyists report very high success rates with non-booting  or  unrepairable systems obtained for next to nothing at flea-markets or surplus stores .

Most of the faults found with the use of D-card:

	wrong switch settings or setup information
	bent and shorted component leads or bus-connector pins
	bad RAM chip(s)
	faulty 8042 Keyboard chip (quite often socketed)
	defective BIOS ROM
	Installation

Pricing

Description	ITEM #	Price
D-Card for ISA Slot	DC-ISA-01	$35
D-Card for PCI Slot	DC-PCI-01	$39
D-Card for ISA Slot with LEDs	DC-ISA-01L	$43
D-Card for PCI Slot with LEDs	DC-PCI-01L	$47
