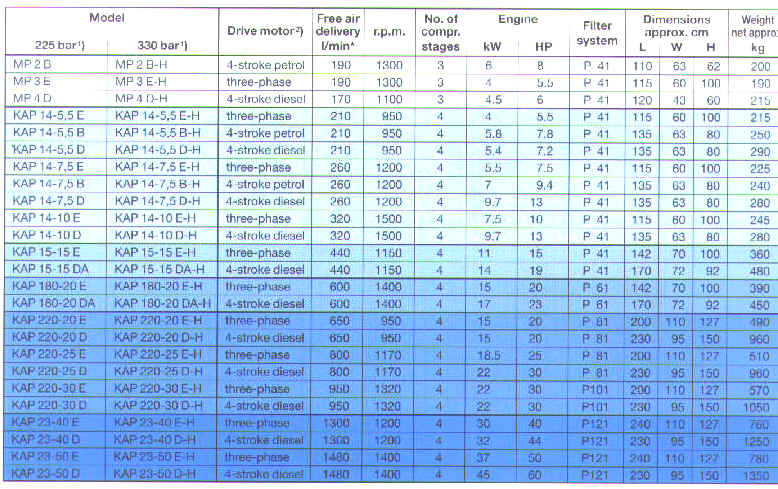

All models: P filter cartridge system for breathing air quality according to DIN
3188.MP..-KAP180 "B" and "D" models are equipped with 3 m long intake
hose and pre-filter.
1) Also available with 225/330 bar switch-over device = HU models (e.g. KAP180-20 E-H U)
2) Electric motor models "E" = 380 V, petrol engine models "B" = Honda
engine, "BA" and "DA" models with electric
starter and 12 V battery (e.g. KAP14-7,5 BA) = option, diesel engine "D" =
diesel engine with hand crank start
MP..to KAP 180: STANDARD: filling assembly = filling hose
1 m, filling valve with automatic venting, German fill-
ing
adaptor G 5/8" according to DIN 477, international filling yoke (only for 225 bar
units),
final pressure gauge.
MP..
models = with 2, KAP14 = with 3, KAP15 + KAP180 = with 4 filling assemblies
Option:
COMP-TRONIC electronic
control
automatic
condensate drain
SECURUS
filter monitoring system
KAP 220+ KAP 23: STANDARD: cartridge filter system is not built onto the unit, but
is in panel form for separate
wall
mounting
SECURUS
filter monitoring system
automatic
condensate drain with start unloading
cycle
counter to determine the pressure change in the final separator
Option:
COMP-TRONIC electronic
control
units:
without integrated filling assembly
bottle
filling by external filling assembly
For all models with COMP-TRONIC: cycle counter is standard to determine the pressure change in the final separator
* MP...-KAP180: bottle fillings from O - 200 bar KAP 220 + KAP 23: measured with gas
flow meter at 200 barFor further information: please ask for brochure AT-E. For
"Super-Silent" units see VERTICUS range, for larger units see industrial units -
IKL-E brochure.To check air quality: AIRLAB IV, please ask for a brochure
