MatchBox
RF Impedance Matching Network Design and Analysis
MatchBox designs the following networks:
• L Network - high pass, low pass
• Pi Network - high pass, low pass, high/low pass, low/high pass
• T Network - high pass, low pass, high/low pass, low/high pass
• 4 Element Network - high pass, low pass, high/low pass, low/high pass

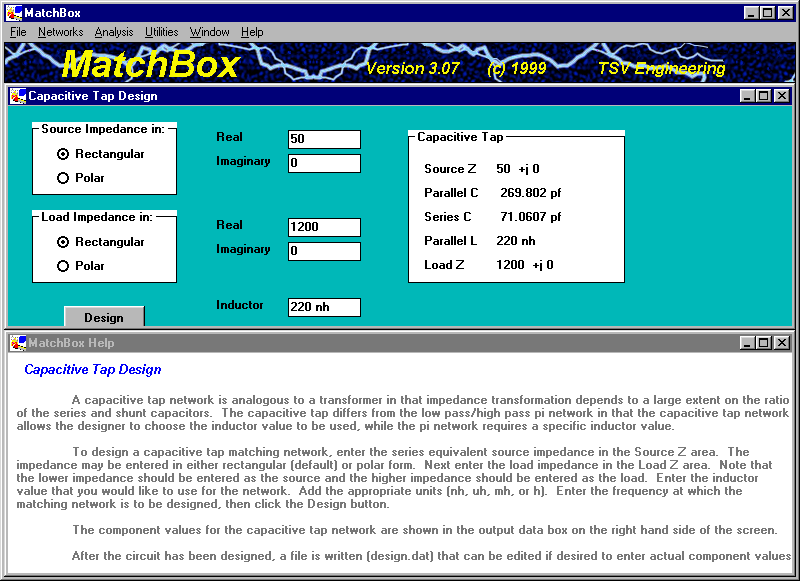

• Capacitive Tap
• Series Transmission Line
• Resistive Attenuator - pi and T networks
MatchBox analyzes the network to verify the design.
• Circuit editor with up to 38 components

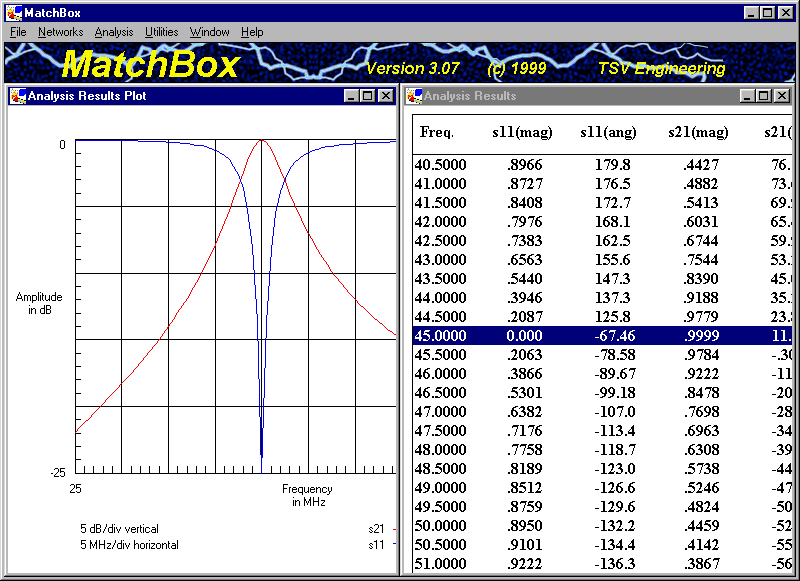

• Graphical or tabular output of transmission and reflection parameters
• Up to 100 analysis frequencies
MatchBox has powerful built-in utilities.
• Series to parallel conversion
• Polar to rectangular conversion
• Impedance to reflection coefficient conversion
• Conversion among S, Y, and Z parameters
• VSWR/return loss/reflected power conversion
• Microstrip design
• Stripline design
• Complex number calculator
MatchBox is easy to use.
• Intuitive, fill-in-the-blank user interface
• Extensive help system - click the help menu and help information for the active window is displayed.
MatchBox is affordable. Compare the price of MatchBox to other commercially available software or to writing your own routines. You will agree MatchBox is an excellent value.
|
