Werther Displays |
40 Milton Ave., Jersey City, NJ 07307 |
Phone 201-653-7621 · · Fax 201-653-7940 |
| TURNTABLE | TURNTABLE W/OUTLET | CEILING TURNER |
|---|---|---|
|
|
|
| STANDARD DISPLAY TURNTABLES | |||||
|---|---|---|---|---|---|
| MODEL # | CAPACITY | HEIGHT | DISK DIA. | SPEED | |
| 104/6 | 8 LBS. | 4" | 6" | 2 RPM | |
| 105/8 | 25 LBS. | 4" | 8-1/2" | 3 RPM | |
| 105/12 | 25 LBS. | 4" | 12" | 3 RPM | |
| 110/8 | 50 LBS. | 4" | 8-1/2" | 2 RPM | |
| 110/12 | 50 LBS. | 4" | 12" | 2 RPM | |
| 110/17 | 50 LBS. | 4" | 17" | 2 RPM | |
| 115/8 | 75 LBS. | 4-1/4" | 8-1/2" | 3 RPM | |
| 115/12 | 75 LBS. | 4-1/4" | 12" | 3 RPM | |
| 115/17 | 75 LBS. | 4-1/4" | 17" | 3 RPM | |
| 120/12 | 150 LBS. | 4-1/4" | 12" | 2 RPM | |
| 120/17 | 150 LBS. | 4-1/4" | 17" | 2 RPM | |
| 125/12 | 250 LBS. | 5-1/8" | 12" | 2 RPM | |
| 125/17 | 250 LBS. | 5-1/8" | 17" | 2 RPM | |
| 125/23 | 250 LBS. | 5-1/8" | 23" | 2 RPM | |

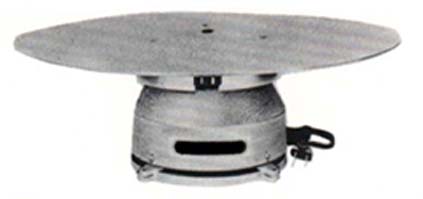

| MODELS WITH ROTATING ELECTRIC OUTLET | |||||
|---|---|---|---|---|---|
| MODEL # | CAPACITY | HEIGHT | DISK DIA. | SPEED | |
| 105/8E | 25 LBS. | 4" | 8-1/2" | 3 RPM | |
| 105/12E | 25 LBS. | 4" | 12" | 3 RPM | |
| 110/8E | 50 LBS. | 4" | 8-1/2" | 2 RPM | |
| 110/12E | 50 LBS. | 4" | 12" | 2 RPM | |
| 110/17E | 50 LBS. | 4" | 17" | 2 RPM | |
| 115/8E | 75 LBS. | 4-1/4" | 8-1/2" | 3 RPM | |
| 115/12E | 75 LBS. | 4-1/4" | 12" | 3 RPM | |
| 115/17E | 75 LBS. | 4-1/4" | 17" | 3 RPM | |
| 120/12E | 150 LBS. | 4-1/4" | 12" | 2 RPM | |
| 120/17E | 150 LBS. | 4-1/4" | 17" | 2 RPM | |
| 125/12E | 250 LBS. | 5-1/8" | 12" | 2 RPM | |
| 125/17E | 250 LBS. | 5-1/8" | 17" | 2 RPM | |
| 125/23E | 250 LBS. | 5-1/8" | 23" | 2 RPM | |
| RUNS FOR TWO TO THREE MONTHS ON 4 ALKALINE 'D' CELL BATTERIES (SUPPLIED). HAS ON/OFF SWITCH. | |||||
|---|---|---|---|---|---|
| MODEL # | CAPACITY | DISK DIA. | SPEED | ||
| TT107/8B | 25 LBS. | 8" | 2 RPM | ||
| TT107/12B | 25 LBS. | 12 | 2 RPM | ||
| TT107/17B | 25 LBS. | 17" | 2 RPM | ||
| TT127/8B | 40 LBS. | 8" | 2 RPM | ||
| TT127/12B | 40 LBS. | 12" | 2 RPM | ||
| TT127/17B | 40 LBS. | 17" | 2 RPM | ||

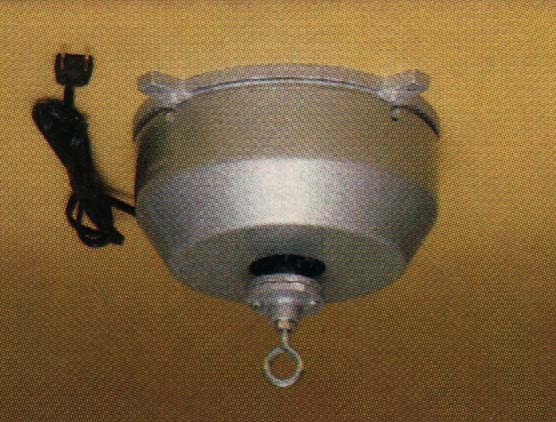

| MODEL # | CAPACITY | SPEED |
|---|---|---|
| CT 104 | 8 LBS. | 3 RPM |
| CT 105 | 15 LBS. | 3 RPM |
| CT 110 | 40 LBS. | 2 RPM |
| CT 115 | 50 LBS. | 3 RPM |
