-Modification Pictures and Details-


-Engine-

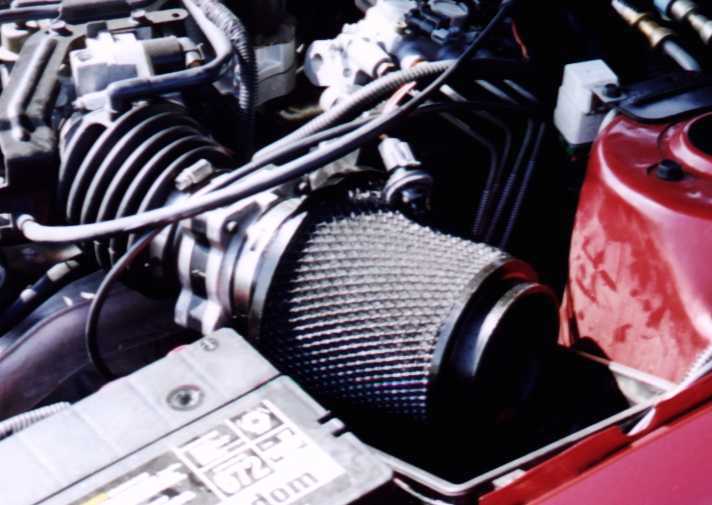

Weapon*R V2 Air Filter


This is an awsome air filter for any beretta owner. K&N doesn't have a cone that
will work for a beretta without some creativity and PVC. The K&N also doesn't
have as big of a surface area as this one in addition to ram induction potential.
The Weapon*R V2 filter snaps right on to where the stock air box was. I had to
remove the air flow temerature sensor and hook it to the filter with a peice of
wire...it works great! I love the sound, but for Solo II, I have to use
a K&N OEM stock replacement filter...this way I can still run in G-Stock class.

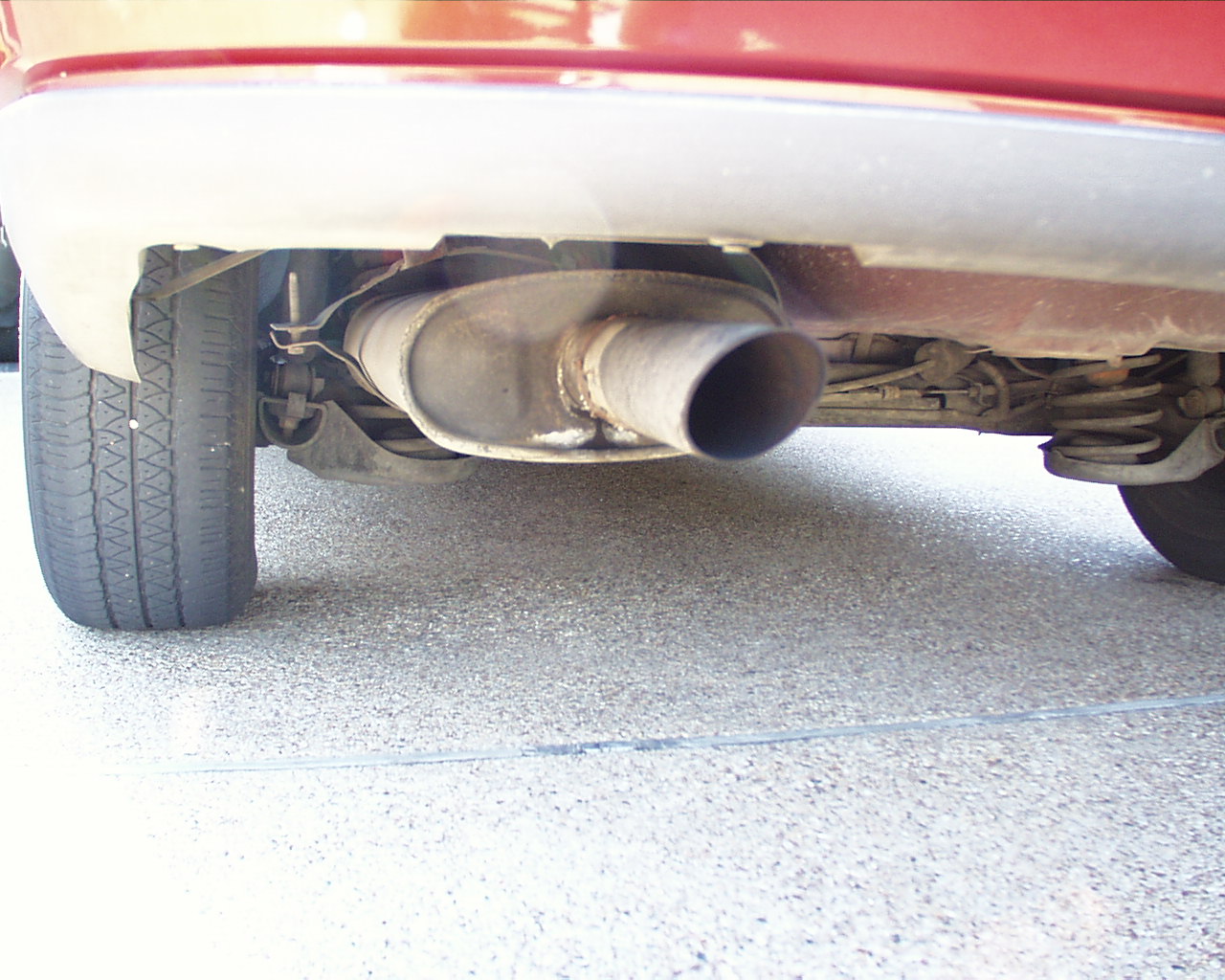

Dynomax Exhaust System


This is a dynomax Ultra Flow muffler (#17287) and a 2.25" Intermediate Pipe
(#45116). These part numbers are supposed to only work on the '88-'92 berettas,
but as you can see, they work on ALL of them. The widened pipe and flow through
muffler make a great addition to the preformance and handling. The lack of a
resonator and added air flow provide the car with an outstanding tone and general
engine noise. The extra roar is not heard well with the windows down, so the ride
is still pretty quiet. Also, the added airflow provides a smoother ride. I would
say that this mod is worth the expense for some extra hp and a better engine tone.


Transmission Cooler

I rigged this behind the radiator; it provides much better cooling than the conventional
cooling. I conected this in line with the radiator, so it acts as an added link for
additional cooling. The car drives tremendously better..especially here in texas where
the heat can really put some damage on an engine. After toying with this, i'd have
to say i'll be puttin one of these things on any car/truck i ever own that has an
automatic tranmission!


-Suspension/Brakes-


KYB GR-2 Struts

A much better ride!! They make the ride nice and firm and get rid of the "boat" like feeling of the oem base beretta.


Gabriel Premuim VST Shocks

The rear is significantly stiffer and takes bumps well. The rear is a little stiffer than i thought it would be, but i still like the feel.


Z26 Level III Suspension Springs

Although the car is up a little, the stiffer springs make a noticable improvement. However, if I were to do this again, I'd go for the much more expensive Eibachs...in order to lower the car more.


Upper Strut Tower Brace

This brace (Part #22576687) does wonders for handling and precision. It keeps
the car much more level through turns and really helps with balance. This is
a must for any beretta that loves to corner. This brace only costs $35.00 from
any GM/Chevrolet dealership. Well worth the cost! BTW, sometimes I can get away
with this autocrossing, but not when people are really looking!


Preformance Friction Brake Pads

GM brakes are typically a little sluggish and this is the best way i have found
to remidy the problem. They take 200-300 miles to brake in, but man do they stick!
NOTE: If you have a '94+ model beretta and you change the pads yourself, make sure
you have a 3/8" hex bit and not a T50 torque bit when taking off the calipers. I've
seen several manuals (such as Haynes) mess this up!


-Exterior-

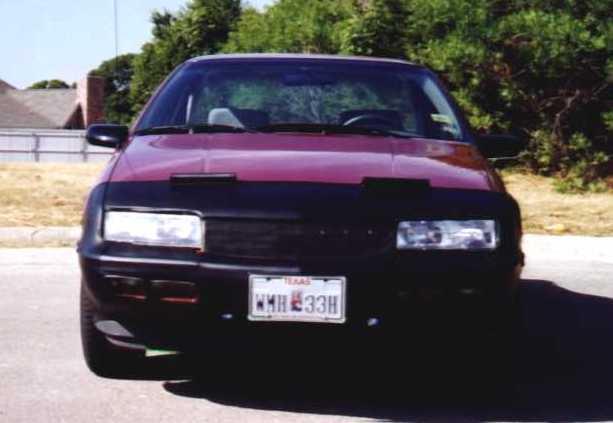

LeBra 2 Piece Car Bra


My very first addition. This car has done, and will be doing much more high speed
(75+++mph) interstate travel. I felt this was a good investment since the highways
in my state are often full of small damaging debris and bugs. This has to date,
saved many dings, bugs, and marks from the front!

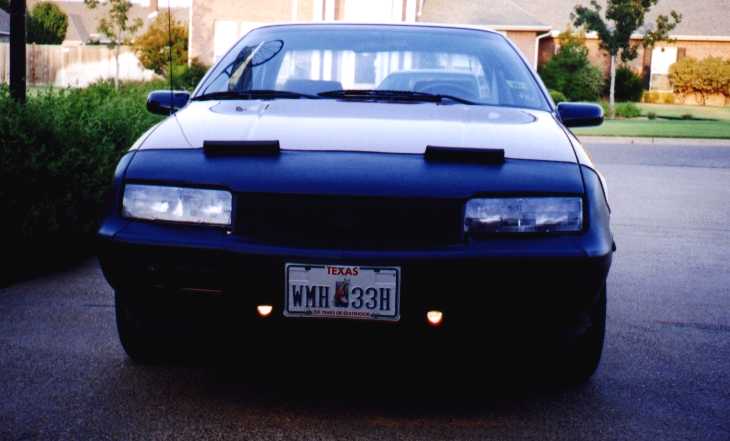

Blazer Halogen Fog Lights


These fog lights are round and have blue lenses. I wired the switch
around the engine bay and next to the hood release. It's not hard
too, I plan to change the placement of the switch soon.


Window Tint

The tinting on the car (not shown in the pics) is 5% rear and 35% side. It looks
good and is still easy to see out of at night.


Headlight/License Plate Covers

I have black GTS headlight covers and smoke tinted license plate covers. They're
just a nice little touch to keep the cayene red-black highlight theme going.

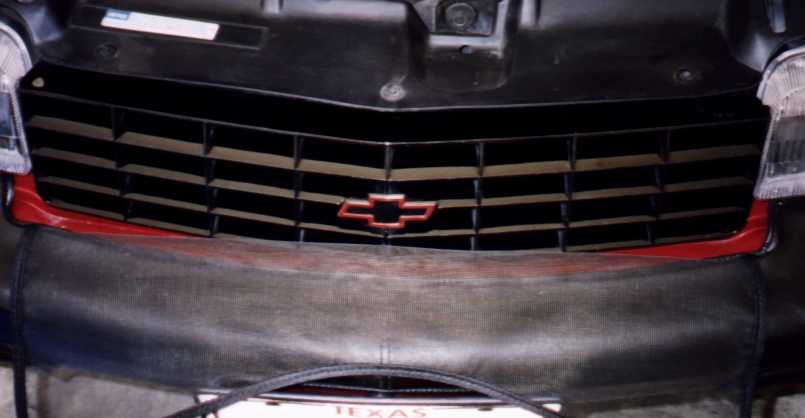

Personal Paint Touch-Ups


I saw an older GT the same color as mine, and the front chevy symbol was red.
It looked awsome, so i painted the grey outline on mine like my car. It looks
so much better now, but it's hard to see in the pictures on this site.
I have also painted the "3100 SFI" on the engine (for the pictures) and the
"chevrolet" on the bottom corner of the rear bumper.


-Interior-

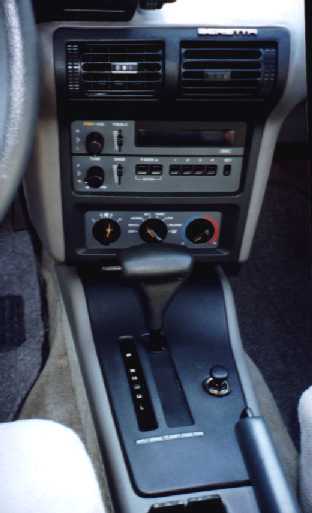

Shifter Handle from a 1991 Cavalier GT


I got this idea from fellow beretta owner Keith White. I needed something to
change out the top-push button handle, and this was perfect. Not only does it
shift phenomenally better, but it matches the interior quite nicely. This was
very quick to change out because the only thing that has to be removed in order
to take it out is a staple in the back of the handle.


Red Interior Lights

I don't have any pics of this, but these lights replace the standard interior
ones. Instead of the boring white light, my car has a red glow to it when lit up!
Very easy to do and only costs a couple dollars. Light (part) #194 covers courtesy
lights. I don't remember the other part numbers.


Z26 Sport Bucket Seats

One word...AWSOME!!...These seats are the perfect addition to a Beretta. They are
exceedingly comfortable and provide the additional sporty look and feel that every
beretta should have. The only problem is that they are damn near impossible to find!
I was VERY lucky to find these...but I had to have these shipped over 2,500 miles to
get them! I recommed them to only those who want to much time over many days and
are prepared to be dissappointed countless times with their search results.
