RADIOBOX POWER

This is the panel type that is in my 1961 radiobox.
There is one other type that uses european type fuses in the panel (the one below uses circuit breakers.)

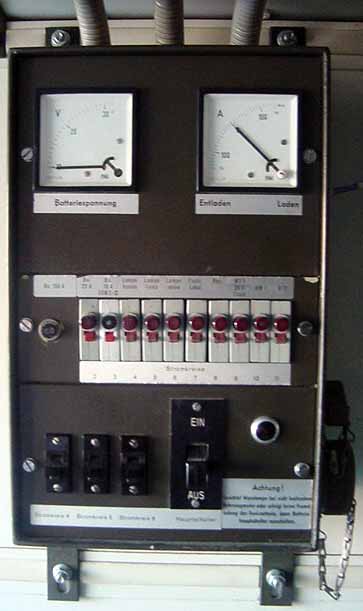

This is the Power panel. Located on the left wall of the box,
approx. between the windows above the desk.

I might like to point out that the this panel does not work unless the
Ground switch "key" (under drivers seat) is in place!

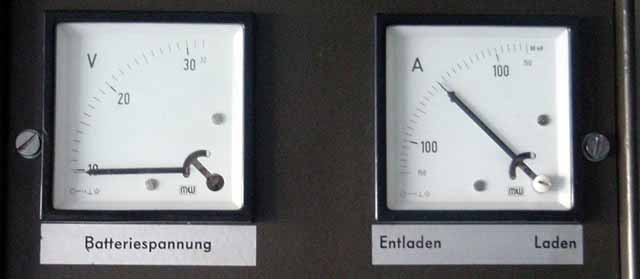

Batteriespannung = Battery Voltage
Entladen = Discharge
Laden = Charge
V = Volts
A = Amps


EIN = IN (ON)
AUS = OUT (OFF)
Stromkreis = Circuit
Hauptschalter = Main Switch
Placard in lower right corner:

Attention!
Should indicator light stay on, without the vehicle engine
running and if no other aux. source of battery charge is
provided, Switch Off battery masterswitch.

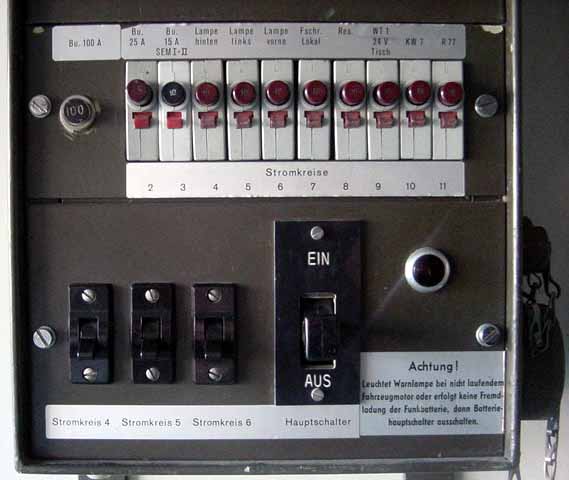

On this panel, to the left of the main switch, Stromkreis 4, 5 and 6 are
the switches for the interior light(4) and the overhead fluorescent lights (5,6)

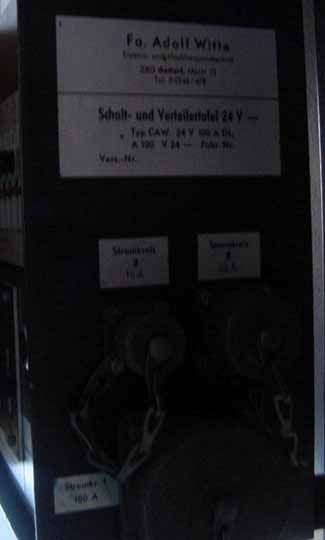

Side of the power panel has 3 connections of various amperage rating for various electrical connections

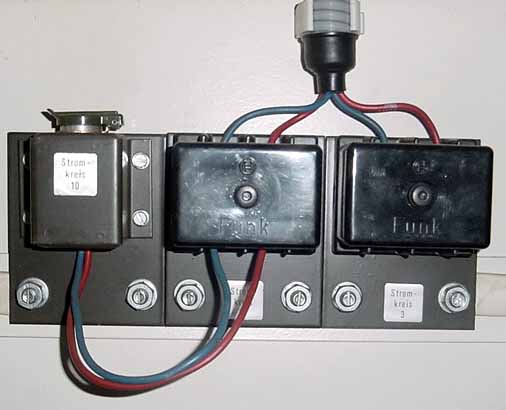

Typical connection points for various equipment.
"Item" 10 on the left,  is a 24vdc accessory jack.
