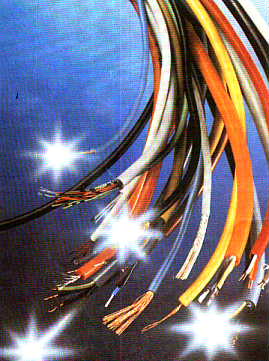

Single and Multicore Flexible Cables.


 PVC insulated single core and multicore flexible cables have a wide range of application in machine tools, appliances, control panels, machinery and industries of every nature.

 Conductors : The conductors are drawn from bright electrolytic grade copper, and annealed conductors are bunched together.

 Insulation : Bunched conductors are insulated with specially formulated, in-house developed PVC compound with high insulation resistance values. The insulation process is carried out on modern high speed extrusion lines with high accuracy, ensuring consistency in performance.

 Sheath : In case of multicore cables, the insulated cores are laid up to form the core assembly. The inner cores are coded for ease of identification as per National/International coding practices. The sheathing is provided with specially formulated PVC compound to facilitate not only ease in stripping but also to withstand mechanical abrasion while in use.

PVC insulated single core and multicore sheathed cables are manufactured as per IS 694/1990, in sizes from 0.5 sq.mm. to 50 sq.mm. in single core and in sizes 0.5 sq.mm.to 4 sq.mm. upto 5 cores. These sizes carry ISI mark and are duly approved by FIA/TAC. The rest of the sizes also generally conform to IS: 694/1990.

 Cables as per BS 6004/1991 and BS: 6500/1990 are also available for export market. Special purpose cables in screened construction can also be made available.




SINGLE CORE/MULTICORE FLEXIBLE CABLES AS PER
IS 694/1990 VOLTAGE GRADE UPTO 1100 VOLTS

AREA sq. mm 0.5 0.75 1.0 1.5 2.5 4.0 6.0 10.0 16.0 25.0 35.0 50.0
CONDUCTOR No. & Size of Wire (Nom.) mm 16/.2 24/.2 32/.2 30/.25 OR 48/.2 50/.25 OR 80/.2 56/.3 84/0.3 80/0.4 OR 140/0.3 126/.4 196/.4 276/.4 396/.4
Max Resistance @ 20 ° C Ohm/Km 39.0 26.0 19.5 13.3 7.98 4.95 3.30 1.91 1.21 0.780 0.554 0.386
Current Rating DC or AC 4 7 12 15 20 27 35 46 62 80 102 138
INSULATION Thickness (Nom.) mm 0.6 0.6 0.6 0.6 0.7 0.8 0.8 1.0 1.0 1.2 1.2 1.4
SINGLE CORE UNSHEATHED Overall Diameter (mm) 2.30 2.50 2.75 2.95 3.65 4.30 5.30 6.8 8.2 10.0 11.2 13.5
SINGLE CORE SHEATHED Sheath Thickness (Nom.) mm 0.9 0.9 0.9 0.9 1.0 1.0
Overall Diameter (Approx.) mm 4.1 4.35 4.5 4.75 5.65 6.4
TWIN FLAT SHEATHED Overall Width mm 4.2 4.45
Overall Height mm 6.50 7.00
2 CORE Sheath Thickness (Nom.) mm 1.0 1.0 1.0 1.0 1.1 1.1
Overall Diameter (Approx.) mm 6.6 7.0 7.5 8.0 9.5 11.00
3 CORE Sheath Thickness (Nom.) mm 1.0 1.0 1.0 1.0 1.1 1.1
Overall Diameter (Approx.) mm 7.0 7.60 7.90 8.50 10.20 11.70
4 CORE Sheath Thickness (Nom.) mm 1.0 1.0 1.0 1.0 1.1 1.1
Overall Diameter (Approx.) mm 7.60 8.25 8.60 9.50 11.05 12.80
Overall Diameter (Approx.) mm 8.30 9.10 9.60 10.3 11.7 13.95

Note : Sheath thickness given are nominal, and overall diameters given are approximate.
The conductor strand diameters are in line with IS : 8130/1984.
The no. of wires indicated are approximate and diameter of strands is nominal and shall be such that it satisfies the requirements as per IS 694/1990. The conductor strand size and conductor resistance requirements as per IS 8130 will be satisfied.

FLEXIBLE MULTICORE CABLES (6 CORES TO 19 CORES) GENERALLY CONFORMING TO IS 694/1990 VOLTAGE GRADE UPTO 1100 VOLTS

CORES
AREA  sq. mm  0.5  0.75  1.0  1.5  2.5  4.0
6 SHEATH THICKNESS(Nom.) mm 0.9 1.0 1.0 1.0 1.1 1.2
OVERALL DIAMETER (Approx.) mm 8.85 9.80 10.25 11.00 13.30 15.70
7 SHEATH THICKNESS(Nom.) mm 0.9 1.0 1.0 1.0 1.1 1.2
OVERALL DIAMETER (Approx.) mm 8.85 9.80 10.25 11.00 13.30 15.70
8 SHEATH THICKNESS(Nom.) mm 1.0 1.0 1.0 1.1 1.2 1.3
OVERALL DIAMETER (Approx.) mm 9.55 10.40 10.85 11.90 14.35 16.90
10 SHEATH THICKNESS(Nom.) mm 1.0 1.1 1.1 1.1 1.3 1.4
OVERALL DIAMETER (Approx.) mm 11.35 12.55 13.15 14.15 17.35 20.40
12 SHEATH THICKNESS(Nom.) mm 1.0 1.1 1.1 1.1 1.3 1.4
OVERALL DIAMETER (Approx.) mm 11.70 13.00 13.55 14.60 17.90 21.10
14 SHEATH THICKNESS(Nom.) mm 1.1 1.1 1.1 1.2 1.3 1.4
OVERALL DIAMETER (Approx.) mm 12.55 13.65 14.30 15.60 18.90 22.20
16 SHEATH THICKNESS(Nom.) mm 1.1 1.2 1.2 1.2 1.4 1.5
OVERALL DIAMETER (Approx.) mm 13.30 14.70 15.40 16.55 20.25 23.70
19 SHEATH THICKNESS(Nom.) mm 1.1 1.2 1.3 1.3 1.4 1.5
OVERALL DIAMETER (Approx.) mm 14.10 15.55 16.50 17.75 21.45 25.00

SINGLE CORE HEAVY DUTY FLEXIBLE CABLES GENERALLY
CONFORMING TO IS 694/1990 VOLTAGE GRADE UPTO 1100 VOLTS

AREA sq.mm 70.0 95.0 120.0 150.0 185.0 240.0
NO.& SIZE OF WIRE No./mm. 360/.5 475/.5 608/.5 750/.5 925/.5 1221/.5
CONDUCTOR MAX. RES @ 20Deg.C Ohm/Km. 0.272 0.206 0.161 0.129 0.106 0.0801
CURRENT DC/AC Amps. 214 254 300 340 390 460
INSULATION THICKNESS(Nom.) mm 1.80 1.90 2.10 2.10 2.50 2.50
O.D.(Approx.) mm 16.15 18.75 21.25 22.25 25.50 28.50

CABLES UPTO 150 sq.mm CAN ALSO BE SUPPLIED AS PER IS 2465/1984 WITH ISI MARK.

THREE & FOUR CORE HEAVY DUTY FLEXIBLE CABLES FOR
VOLTAGE GRADE UPTO 1100 VOLTS

AREA sq.mm 6.0 10.0 16.0 25.0 35.0 50.0 70.0 95.0 120.0
CONDUCTOR NO.& SIZE OF WIRE mm. 84/.3 140/.3 or 80/.4 226/.3 or 126/.4 354/.3 or 196/.4 495/.3 or 276/.4 703/.3 or 396/.4 360/.5 475/.5 608/.5
MAX.RES. Ohm/Km. 3.3 1.91 1.21 0.78 0.554 0.386 0.272 0.206 0.161
CURRENT Amps. 31 42 57 72 91 120 165 200 225
INSULATION THICKNESS mm. 0.8 1.0 1.0 1.2 1.2 1.4 1.4 1.6 1.6
SHEATH
3-CORE		 THICKNESS (Nom.) mm 1.20 1.30 1.30 1.50 1.60 1.60 1.80 1.80 2.00
O.D (Approx.) mm 14.05 18.00 20.60 25.12 28.40 32.87 37.78 43.55 47.95
SHEATH 4-CORE THICKNESS (Nom.) mm 1.50 1.50 1.50 1.50 1.60 1.80 2.00 2.00 2.00
O.D (Approx.) mm 15.80 19.00 23.00 28.00 31.44 36.87 41.93 48.81 53.30

COLOUR CODING

TYPE
COLOURS - CORE  COLOURS - SHEATH
Single Core Unsheathed (SC UNSH) Red; Yellow; Blue; Black
Single Core Sheathed (SC SH) Black White or Black
Twin Twisted Red & Black
Twin Parallel White or Grey
Twin Flat Sheathed (TF SH)  Red & Black Black & Grey
2 Core Round Sheathed (2 Cr Rd)  Red & Black Black & Grey
3 Core round Sheathed (3 Cr Rd) Red; Black & Yellow/Green for earth Black or Grey
4 Core Round Sheathed (4 Cr Rd) Red; Yellow, Blue & Yellow /Green for earth Black or Grey
5 Core Round Sheathed (5 Cr Rd) Red; yellow, Blue, Black & Grey  Black or Grey

Cables can be offered to British or equivalent standards. Specifications for a representative single core range are given below :


SINGLE CORE UNSHEATHED CABLES,
450/750V DC AND 600/1000 V AC

Conductor Cross Section mm Radial Thickness of insulation
(Nom.) mm 		 Cables with stranded conductor (H07V-R) Conductor construction No./size of wire mm Cables with stranded conductor (H07V-R) Cable OD (maximum) mm Cables with flexible conductor (H07V-K) Conductor construction No./size of wire mm Cables with flexible conductor (H07V-K) Cable OD (maximum) mm
0.5 0.6 7/.30 2.6 16/.2* 2.6
0.75 0.6 7/.37 2.8 24/.2* 2.8
1.0 0.6 7/.44 3.0 32/.2* 3.0
1.5 0.7 7/.53 3.5 30/.25 3.5
2.5 0.8 7/.67 4.2 50/.25 4.2
4.0 0.8 7/.85 4.8 56/.3 4.8
6.0 0.8 7/1.04 5.4 84/.3 6.4
10.0 1.0 7/1.35 6.8 80/.4 7.6
16.0 1.0 7/1.70 8.0 126/.4 8.8
25.0 1.2 7/2.14 9.8 196/.4 11.0
35.0 1.2 19/1.53 11.0 276/.4 12.5
50.0 1.4 19/1.78 13.0 396/.4 14.5
70.0 1.4 19/2.14 15.0 360/.5 17.0
95.0 1.6 19/2.52 17.0 475/.5 19.0
120.0 1.6 37/2.03 19.0 608/.5 21.0
150.0 1.8 37/2.25 21.0 756/.5 23.5
185.0 2.0 37/2.52 23.5 925/.5 26.0
240.0 2.2 61/2.25 26.5 1221/.5 29.5

* These sizes are as per BS : 6500 (harmonised code HO5 V-K), others are as per BS 6004.

 Notes :

  1. Standard conductors are Class 2 type, flexible conductors are Class 5 type as per BS 6360.
  2. Cables upto and including 10.0 sq.mm. can be offered with rigid / solid Class 1 type conductors.
  3. On specific request, cables of sizes 6.0 sq.mm. and above can be offered with Class 6 extra flexible conductors as per BS : 6360.
Other types of cables offered to overseas market include :
