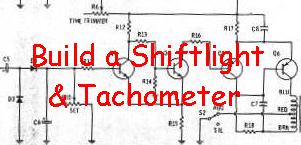

AUDIO TACHOMETER WITH SHIFT LIGHT
Found in an old electronics book from the 80's
Click on the thumbnail for the full size pic. Apologies for the black and white,
as soon as I get a flatbed scanner I will scan it in colour. If you want the complete article
can download the ZIP file here: tacho.zip.
