CD Publisher Autoloader Duplicator
Configurations��� Specifications

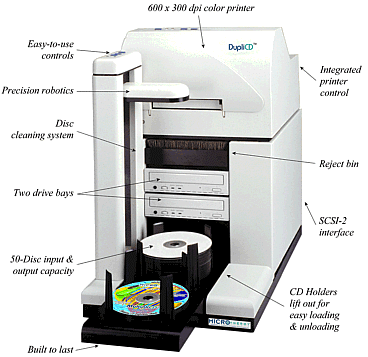

The Desktop CD Publisher is a complete CD Duplicating, Verifying and Printing subsystem for professional title development and data distribution. The 8X duplication capabilities provide hands-off, lights-out duplication of up to 50-discs per run. During duplication the 8X verifier insures the quality of the recording against the master data. The autoloader feeds the blank CD-R media into the each recorder and then into the Thermal Ink-Jet Color Printer. � Printing your logo and text at 1200x1200dpi completes the process of creating a professional looking CD at a fraction of the cost of using outside services.� An Ionized Disc Cleaning mechanism insures the media to be free of dust and other materials that may interfere with the duplication process.The CD Publisher comes in a varity of configurations with from one to four drives and with or without a color printer. Please see our catalog for more information.� �

����� � ��� ���� ����� ���CD Publisher










����

CONFIGURATIONS

BRAND/MODEL

CDRDPUB282P

CDRDPUB484P

Number of drive bays

Max of 2

Max of 4

Recorder(s)

Up to 2

Up to 4

Read-in drive

Recorder

Recorder

Expandable

Yes

Yes

Color printer

1200x1200 dpi

1200x1200 dpi

Interface recorders

SCSI2

SCSI2

Interface printer

Centronix/Apple

Centronix/Apple

Power

120v/220v

120v/220v

Dimensions

11W x 18H x 17W

11W x 18H x 17D

Weight

Net 30 lbs

Net 35 lbs










���

SPECIFICATIONS

Write Drive Configuration: Panasonic 8x/20x CD-R Drive
Plextor 8x/20x CD-R Drive
Read First recorder or On-The-Fly writing technology
Recorder MTBF: >50,000 hours POH (25% duty cycle)
Internal Controller: Proprietary controller
Power Source: 115V/230V switchable 50~60Hz
Weight: 90 lbs. loaded
Dimensions: 16.5"H� 14.5"W� 19.5" D
Power Consumption: 200W
Supported Formats
CD-ROM Mode 1 & Mode 2
Form 1 & Form 2
Joliet
Rockridge
USF
CD-I Form 1 & Form 2
Video CD
Karaoke
CD-DA (CD Audio) w/ISRC
Mixed Mode
Multi-Session
CD-ROM XA Mode 2
ISO 9600
HFS
Hybrid
Photo-CD
CD-G*
Cd Enhanced
Subindex & UPC code support
Single Session
DAO� TAO�� SAO
Warranty
One year parts and labor.
