Shawn Pasley's Taurus SHO

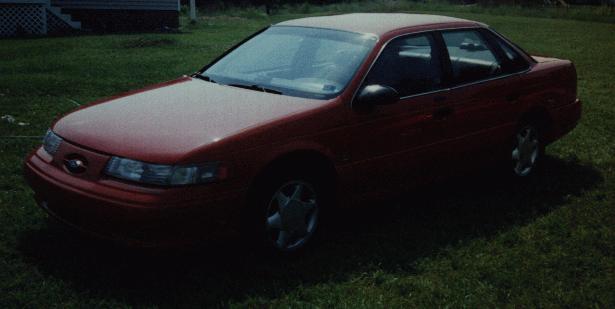

This is my 1992 SHO as I first bought it.This is my second one,my first being an 89 but because of problems such as broken catalitic converters and other nearly equal catastrophic happenings, I traded it in on this one.There is a lot to be learned about this car on the net, pay attention!

Current modifications:

-3.2L engine with Froged JE Pistons:Compression lowered to 9:1 for supercharging
-short tube headers(replace factory manifolds)
-Dynomax catback exhaust (Super Turbo's)
-Sho Shop high flow Y pipe with catalitic converters(no cats anymore!)
-80mm mass air meter
-Sho shop reinforced front/rear motor and transmition mounts
-Koni adjustable struts
-Sho Shop Linear rate springs
-FPS Automotive solid subframe bushings(aluminum)(see below)
-subframe connectors
-tubular aluminum rear control arms(adjustable)
-Sho Shop competition clutch
-BF Goodrich Comp T/A ZR 235/45/17 "z" speed rated tires and TSW 17x8 VX-1 Wheels.
-K&N cone filter
-FPS subframe connectors
-Sho Shop Stage II cams
-ported and polished heads
-ported/polished intake manifold
-26mm rear/24mm front sway bars and Energy polyurethane sway bar bushings
-Sho Shop LPM computer module
-short throw shifter
-Baer 13" brakes

Next on the wish list(in order):

-68mm Throttle body
-36lb injectors w/modified fuel rails
-Sho Shop rear strut tower brace
-Vortec supercharger
-Underdrive pulleys
-MSD digital multi spark coil pack
-26mm front/28mm rear sway bars

�

SOME EXPERIENCES I HAVE HAD(Please e-mail me with your questions and comments)

�

�

I have had both the Eibach lowering springs and the Sho Shop linear rate springs. Eibach: -looks nice in front, but didn't lower the back at all(at least didn't seem like it) -handled well, nice and stiff but I didn't like the variable rate spring design.in my opinion the variable rate leads to an unpredictable feel at the limit. -good quality spring but not what I was looking for.

Sho Shop: -lowers the car 2" in front 1" in back -handles VERY well, extremely flat in the corners, but they have a lower spring rate than the Eibachs and are somewhat softer. -Very predictable but I wished the rates were a little higher.Definately my choice.

I am going to put together a coilover kit for my car for ultamite handling.

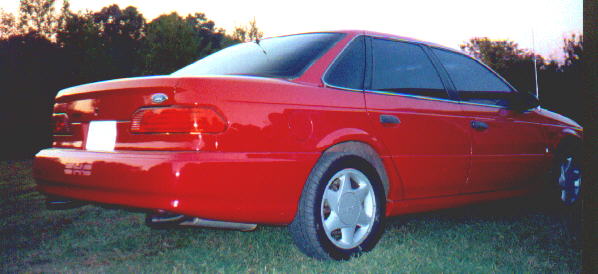

Here are pictures of my car with the Eibach's and the 50 series BF Goodrich tires.

Stage 1 Cam Installation(old, I have stage II now)Pictures
